Common attributes of rules, signatures, and alerting engines

First, a cursory review of common rule-based approaches to detecting malicious activity.

Streaming or batch-retrieval detection engines

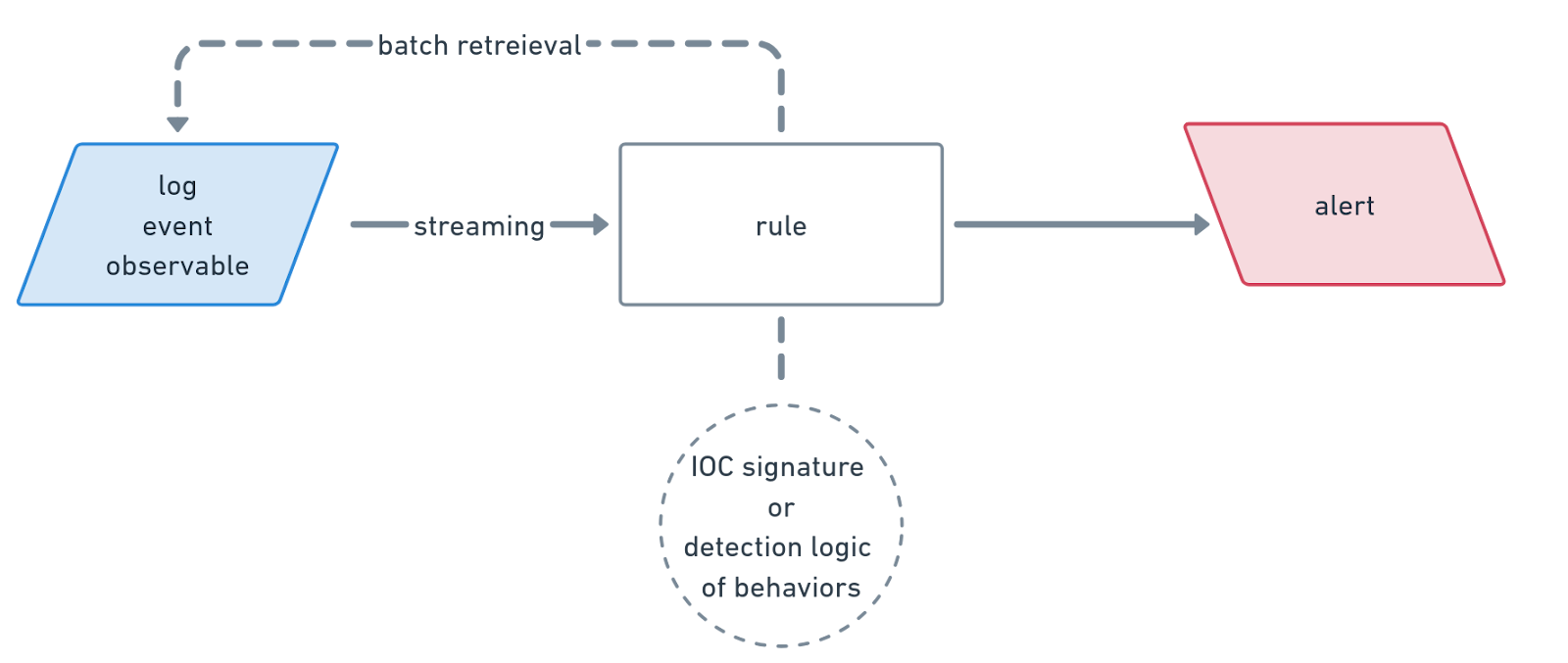

Fig. 84 Streaming or batch-based detection engine

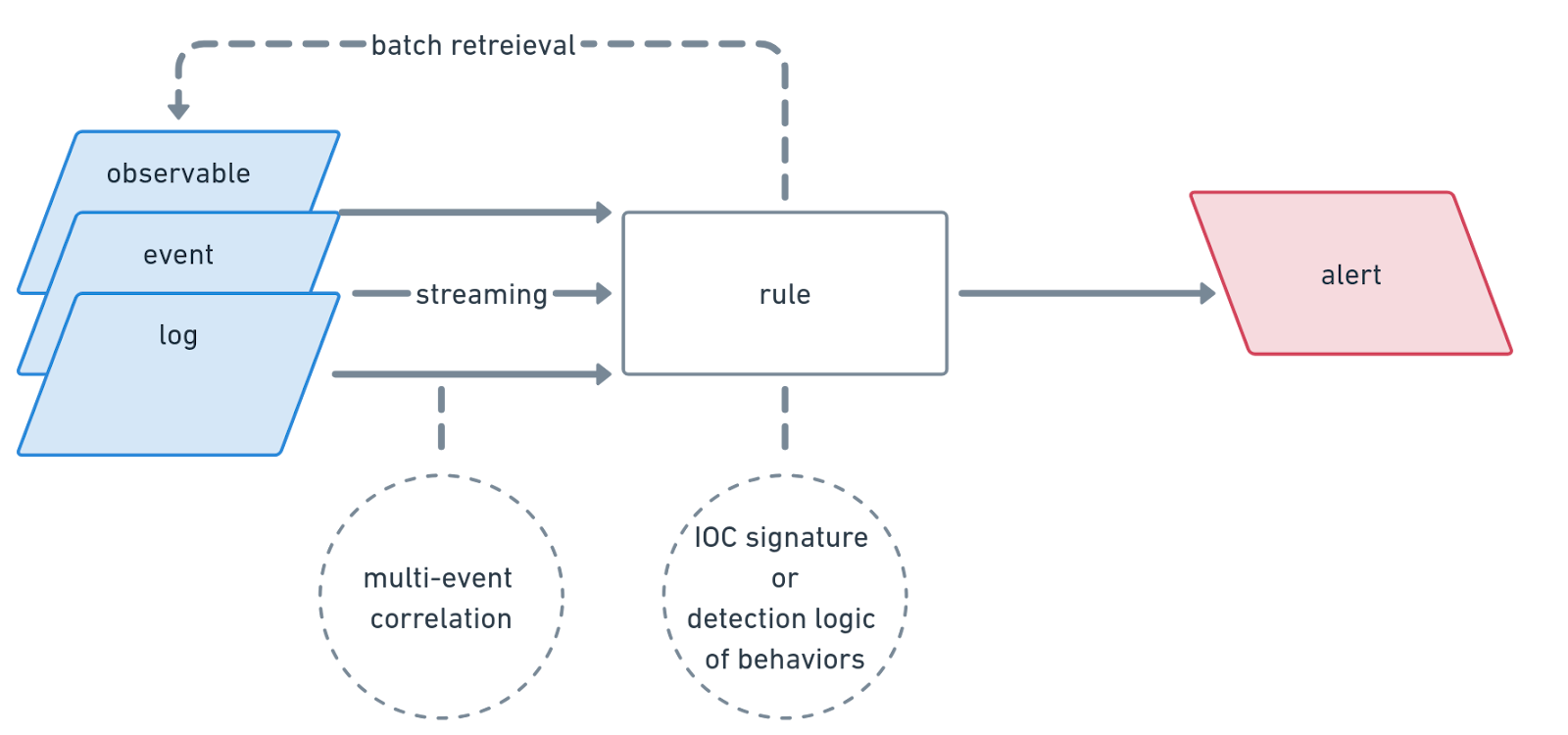

Fig. 85 Correlation on detection engine

This is the most common example in use today. This is what most SIEM and EDR engine implementations look like, with SIEM tending to be batch-retrieval and EDR streaming engines. Other technologies that employ this model are network Intrusion Detection Systems (IDS).

Active host scanning

Fig. 86 Active host scanning

This is essentially the OSQuery model, where queries are used to actively retrieve information from hosts. What is less frequently seen is this as a distributed model and built on top of a scheduled recurring cadence (as opposed to just manual runs). This opens this up to be a viable option to alerting as opposed to just triage and threat hunting.

Triggered scanning

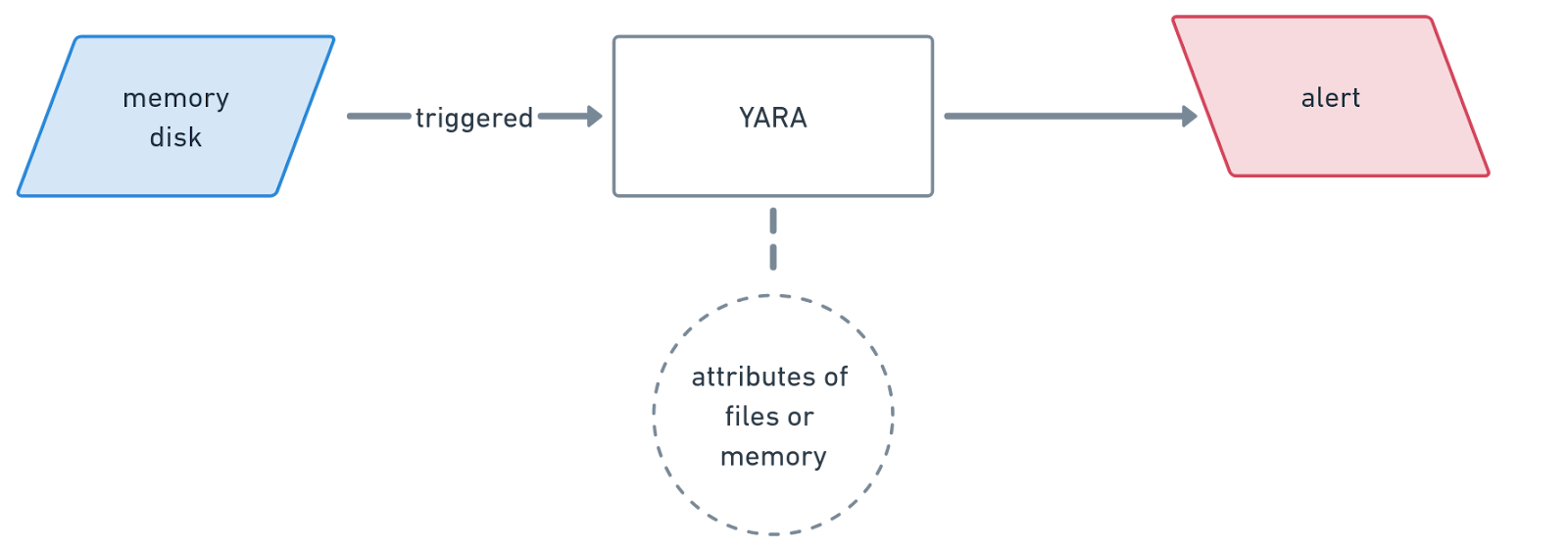

Fig. 87 Triggered scanning

Triggered scanning refers to a reactive approach based on some satisfied criteria. A common usage of this is to perform YARA scanning on patterns or attributes of static files or memory snapshots. These findings can then be used to generate alerts or events.
