An overly simple E2E example

An overly simple E2E example#

Create rule#

Leverage a user friendly format such as TOML as opposed to JSON

[metadata]
creation_date = "2020/08/18"
integration = ["endpoint", "windows", "system"]
maturity = "production"
min_stack_comments = "New fields added: required_fields, related_integrations, setup"
min_stack_version = "8.3.0"
updated_date = "2024/01/16"

[rule]
author = ["Elastic"]
description = """
Identifies the Internet Information Services (IIS) command-line tool, AppCmd, being used to list passwords. An attacker
with IIS web server access via a web shell can decrypt and dump the IIS AppPool service account password using AppCmd.
"""
from = "now-9m"
index = ["winlogbeat-*", "logs-endpoint.events.*", "logs-windows.*"]
language = "eql"
license = "Elastic License v2"
max_signals = 33
name = "Microsoft IIS Service Account Password Dumped"
references = ["https://blog.netspi.com/decrypting-iis-passwords-to-break-out-of-the-dmz-part-1/"]
risk_score = 73
rule_id = "0564fb9d-90b9-4234-a411-82a546dc1343"
setup = "..."
severity = "high"
tags = ["Domain: Endpoint", "OS: Windows", "Use Case: Threat Detection", "Tactic: Credential Access", "Data Source: Elastic Endgame", "Data Source: Elastic Defend"]
timestamp_override = "event.ingested"
type = "eql"

query = '''
process where host.os.type == "windows" and event.type == "start" and
   (process.name : "appcmd.exe" or ?process.pe.original_file_name == "appcmd.exe") and
   process.args : "/list" and process.args : "/text*password"
'''


[[rule.threat]]
framework = "MITRE ATT&CK"
[[rule.threat.technique]]
id = "T1003"
name = "OS Credential Dumping"
reference = "https://attack.mitre.org/techniques/T1003/"


[rule.threat.tactic]
id = "TA0006"
name = "Credential Access"
reference = "https://attack.mitre.org/tactics/TA0006/"

Validate format#

Is this valid TOML?

Validate schema#

Load the rule as code and use a schema to validate.

../_images/49-rule-schema.png

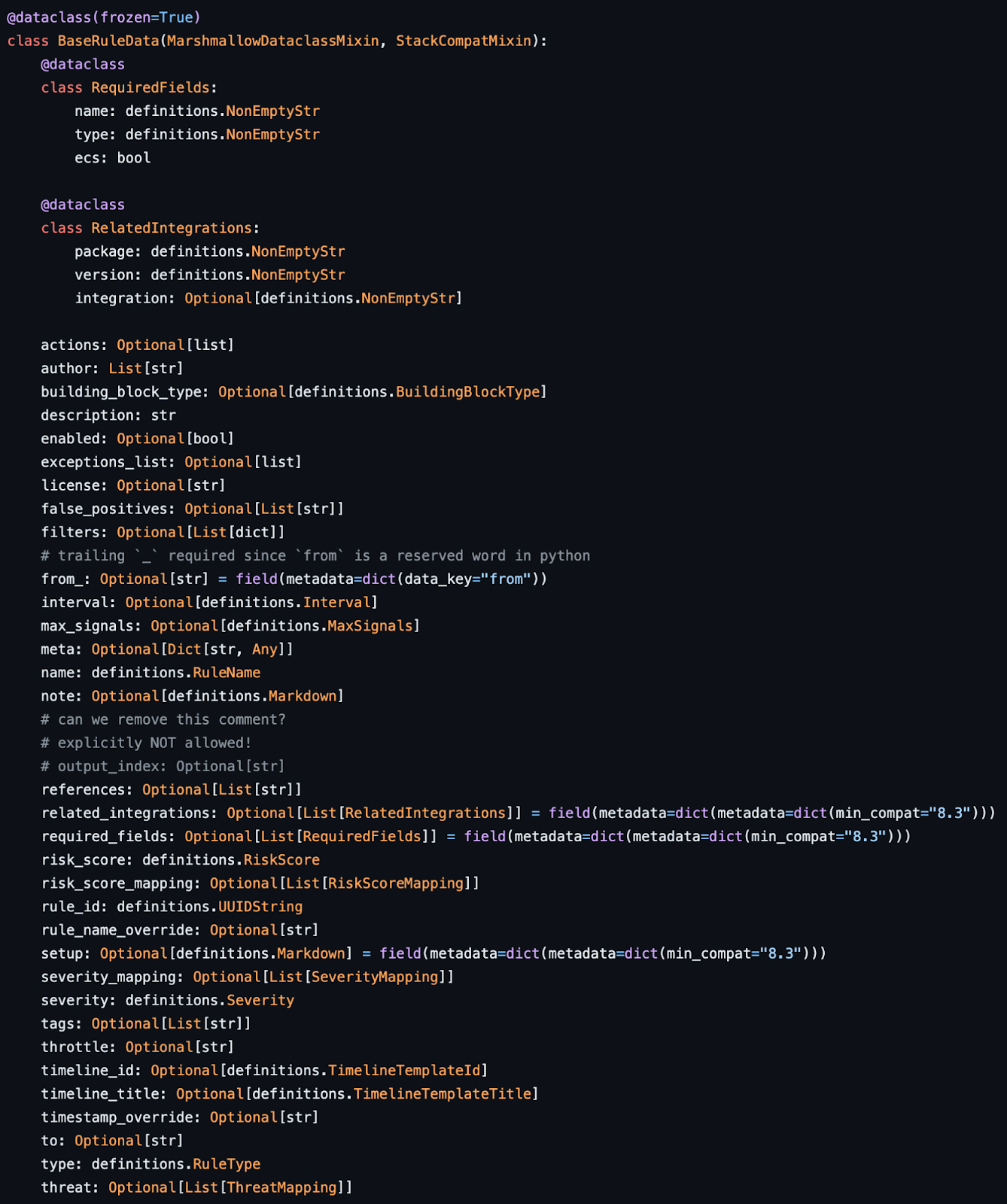

Fig. 49 Example rule schema for validation#

Validate detection logic#

Validate the syntax, semantics, and data schema of the detection logic.

../_images/50-rule-validator.png

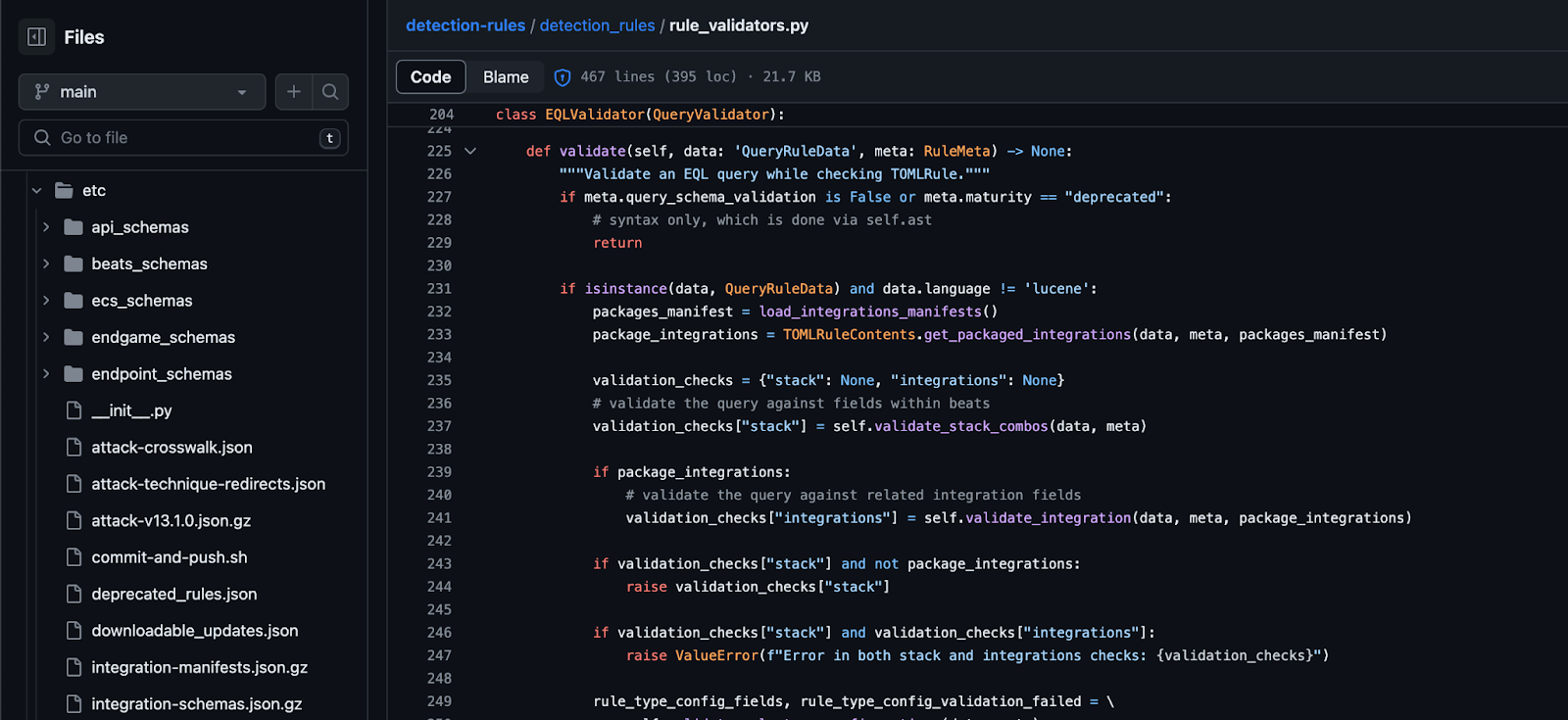

Fig. 50 Example code to validate detection logic#

{'stack': EqlSchemaError('Error at line:4,column:3
Field not recognized for process event
  event.type == "start" and process.name == "debugfs" and
  process.args : "/dev/sd*" and not process.args == "-R" and
  container.security_context.privileged == true
  ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
stack: 8.9.0, beats: 8.9.0,ecs: 8.9.0, endgame: 8.4.0'), 'integrations': EqlSchemaError('Error at line:4,column:3
Field not recognized for process event
  event.type == "start" and process.name == "debugfs" and
  process.args : "/dev/sd*" and not process.args == "-R" and
  container.security_context.privileged == true
  ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
stack: 8.8.0, integration: None,ecs: 8.8.0, package: cloud_defend, package_version: 1.2.2')}

Validate semantics#

Once the rule is fully loaded and mostly validated, with complete context, is there any final validation, such as build time fields.

Unit tests#

Perform additional testing against the rule and entire rule set.

../_images/51-unit-tests.png

Fig. 51 Example unit tests#

E2E test#

Fully load the rules to the platform and perform functional and efficacy tests.

../_images/52-e2e-testing.png

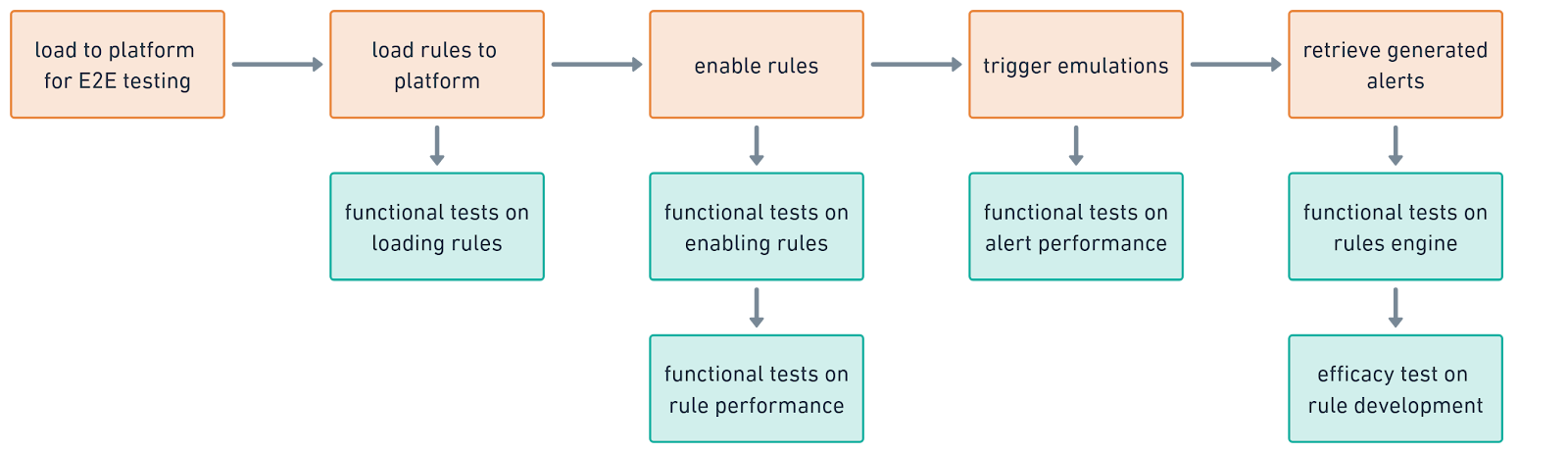

Fig. 52 End-to-end testing flow#

Merge to dev branch#

Commit and push changes to the development branch.

Deploy to test platform with CI/CD#

CI/CD should trigger on the merge and automatically push to a development platform for testing.

Functional and E2E tests#

Perform the same tests as the previous E2E as part of the CI/CD deployment.

Merge to main#

Once E2E testing is validated and all expectations are met on the development platform testing, merge the changes to the main branch.

Deploy to production platform with CI/CD#

CI/CD should trigger on the merge and automatically push to the production platform.

Receive telemetry on performance#

Telemetry and metrics should be reporting on the deployment and use of the rules.

Tune the rule within the platform#

Based on feedback from the telemetry, modify the rule within the platform to tune it accordingly.

Replicate changes back to VCS#

DaC workflows integrated with the platform should trigger on the rule change to replicate the changes back to the repo with a commit or pull request (this step is only applicable if the dual sync governance strategy is employed).
